Supply, installation, commissioning, testing, Operation & maintenance of instrumentation, automation & SCADA system at fields & Central Control Room (CCR) for 3 years including 1 year Defect Liability Period comprising of the entire water network from Raw Water (Intake vells & River), WTPs, MBRs, Intermediate Pump Houses to DMA Zones of intelligent instruments, cabling etc in order to facilitate logical, sequential and autorri-at ie operations of time Raw water Pumping, WTPS, Pump Houses, Automatic controlling of Valves.

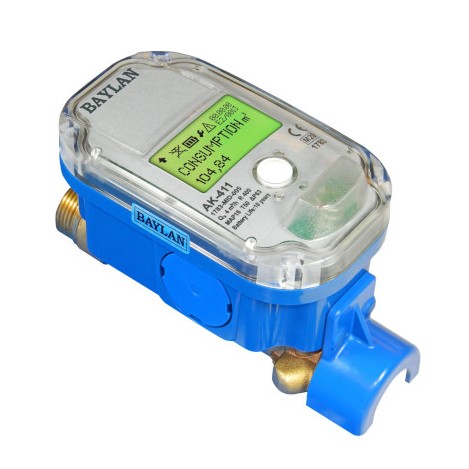

AK-411 Smart Ultrasonic Water Meter
(Lora/AMR/AMI/RF)
MID Certificated, RF Readings, Supports Wireless MBUS Protocol, Integrated Lora module-chipset allows both LORA and FSK modulation, Supports LoRaWAN™and Wireless MBUS Protocols simultaneously (Optional), Supports LoRaWAN™- Class A Protocol, Built-in buzzer, Selectable Frequency Band EU 863-870 Mhz, Ultrasonic principle assures very high sensitivity even at low flow.
Contactless card usage ensures isolation against external affects, 3.6V Lithium battery replaced by local administration, LCD display with back light, Advanced service network, Suitable for cold water up to 50°C, Suitable for potable water, No measurement of air, Reverse flow detection, Wide dynamic measuring range and low pressure loss, Solid stainless steel reflector, IP 68 protection class, Can be mounted all positions desired, Leakage control system, 3 years of warranty, Service and spare parts available for 10 years.
AK-411 Smart Ultrasonic Water Meter
| Details | MID certified, ISO 4064:2014, support LORAWAN/RF, Mod-bus interface, LCD display |
| Size Available | 15mm, 20mm, 25mm, 32mm & 40mm |
| On Request | RF Reading |
| Support wireless Mod-bus | |
| Leakage control | |
| Project execution support | |
| O&M up to 3 years and more |

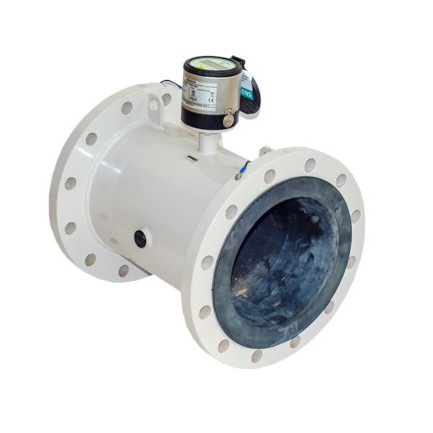

Electro Magnetic Flow Meter
Inbuilt battery / AC mains operated flow meter with pressure sensing, data logging & remote transmission of reading through GPRS – GSM communication, suitable for distribution network & transmission mains, line size 40mm to 2000mm dia.
Electro Magnetic Flow Meter
| Power supply | mains 230 v ac,24 v dc operation |
| Inbuilt battery operated transmitter and sensor with life span of 5 years. Without any external power supply | |
| Inbuilt battery powered meter with built in RTU and pressure logger with gprs –gsm connectivity.For distributed network | |
| Support offered | Data logging and report generation |
| Support | Onsite installation and commissioning |
| O&M | p to 5years or more offered on request |
| Output | local LCD display, 4- 20 ma, pulse. |
| On request | Remote indicator totalisers, GSM, GPRS controllers for A.M.R. (Automatic Meter Reading) |
