Every drop of clean water is precious. Unfortunately, 30—50% of water is lost through aging infrastructure. And lost water equals lost revenue to the water service supplier. Water is lost through leaks and cracks in pipes and their fittings. Since most infrastructure is underground, it is virtually impossible to visually determine the location of these leaks unless the water has reached the surface (causing ponding and sink holes, structural damage, buckling pavement, etc.), and the exact location may be indeterminate. Leak detection requires special technologies that allow inspectors to precisely determine the location and severity of pipeline leaks. This is a field that continues to grow and advance by utilizing both established technology and by adopting emerging methods.
AK-411 Smart Ultrasonic Water Meter
(Lora/AMR/AMI/RF)
MID Certificated, RF Readings, Supports Wireless MBUS Protocol, Integrated Lora module-chipset allows both LORA and FSK modulation, Supports LoRaWAN™and Wireless MBUS Protocols simultaneously (Optional), Supports LoRaWAN™- Class A Protocol, Built-in buzzer, Selectable Frequency Band EU 863-870 Mhz, Ultrasonic principle assures very high sensitivity even at low flow.
Contactless card usage ensures isolation against external affects, 3.6V Lithium battery replaced by local administration, LCD display with back light, Advanced service network, Suitable for cold water up to 50°C, Suitable for potable water, No measurement of air, Reverse flow detection, Wide dynamic measuring range and low pressure loss, Solid stainless steel reflector, IP 68 protection class, Can be mounted all positions desired, Leakage control system, 3 years of warranty, Service and spare parts available for 10 years.
AK-411 Smart Ultrasonic Water Meter
| Details | MID certified, ISO 4064:2014, support LORAWAN/RF, Mod-bus interface, LCD display |
| Size Available | 15mm, 20mm, 25mm, 32mm & 40mm |
| On Request | RF Reading |
| Support wireless Mod-bus | |
| Leakage control | |
| Project execution support | |
| O&M up to 3 years and more |
Electro Magnetic Flow Meter
Inbuilt battery / AC mains operated flow meter with pressure sensing, data logging & remote transmission of reading through GPRS – GSM communication, suitable for distribution network & transmission mains, line size 40mm to 2000mm dia.
Electro Magnetic Flow Meter
| Power supply | mains 230 v ac,24 v dc operation |
| Inbuilt battery operated transmitter and sensor with life span of 5 years. Without any external power supply | |
| Inbuilt battery powered meter with built in RTU and pressure logger with gprs –gsm connectivity.For distributed network | |
| Support offered | Data logging and report generation |
| Support | Onsite installation and commissioning |
| O&M | p to 5years or more offered on request |
| Output | local LCD display, 4- 20 ma, pulse. |
| On request | Remote indicator totalisers, GSM, GPRS controllers for A.M.R. (Automatic Meter Reading) |

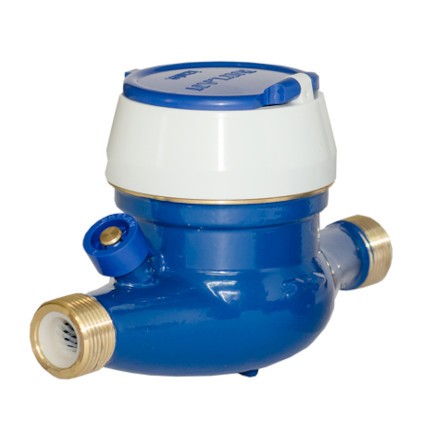

Domestic Water Meter
Multijet, horizontal, inferential with magnetic drive & dry dial, ISO 4064, FCRI endurance test passed, suitable for Municipal corporations, Councils, Grampanchayats as well as Water Supply contractors, AMR & AMR ready options available, line sizes – 15mm, 20mm, 25mm, 32mm, 40mm & 50mm.
Domestic Water Meter
| Details | Multijet, dry type, brass body, MID certified. Class B ,ISO 4064 :2005 |
| FCRI, kerala, Pallakhad. Endurance/life cycle tested | |
| Sizes available | 15 mm, 20 mm 25 mm & 40 mm |
| AMR, Non AMR & AMR READY | |
| On request | Bulk meters based on woltman type principle |
| Walk/Drive by AMR system | |
| Fixed wireless AMR system | |
| GPRS, GPS based AMR system | |
| O&M up to 5 years and more | |
| Project execution support |

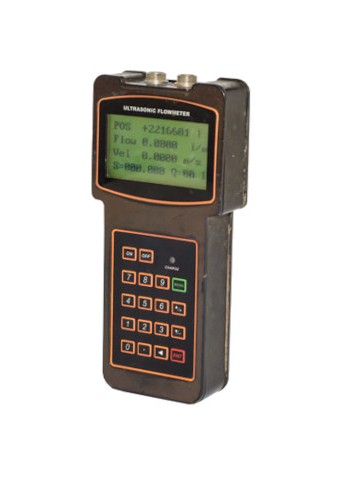

Portable Flow Meter
In built chargeable battery powered 4hrs, 8hrs (optional).
Portable Flow Meter
| Fluids | Types | Any homogeneous and sonically conductive liquid |
| Temperature range | -40 C ~ 160 C | |
| Turbidity | Less than 10000ppm(10g/l) | |
| Pipe | Types | Carbon steel, stainless steel, cast iron, copper etc |
| Diameter | DN15~DN6000 | |
| Lining | Tax Expory, rubber, mortar, polypropylene etc | |
| Accuracy | +-1% | |
| Linearity | 0.5% | |
| Response Time | 1-999 seconds, user-configurable | |
| Velocity | 0~32m/s | |
| Measure Principle | Transit time | |
| Display | 2X20 English letters LCD display | |
| Power Supply | AC 220V |

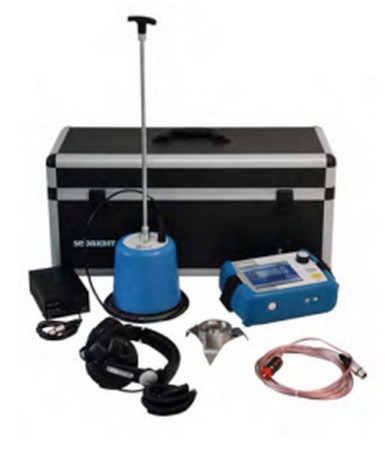

Leak Detection Equipments
We deal in following type of Leak detection equipment for supply ,training and after sales support. For reputed brands Pressure loggers, listening sticks , ground microphone & pipe & cable locaters, portable ultrasonic flowmeters, Insetion type electromagnetic flowmeters Noise loggers, co-relater and associated software and GPRS-GSM communication , hand held local displays as PDA, TAB & laptop & accessories, required for leak detections applications. Pipe and cable locaters are used for detection of underground pipe and cables before excavation and location fixing. Listening stick and leak, locator Leak noise coordinators. Can be used to locate leak noise. Ground microphone or elephant foot sensors used to pi point location of leak. Pressure loggers are used to analyze DMA area pressures at diff nodes and tail ends. Mainly these instruments are used for distribution network management & 24x7 water projects.
Leak Detection Equipments
| Cable locators | |
| Listening sticks | |
| Leak locator | |
| Leak noise coordinators | |
| Pressure transmitters & Loggers | |
| Flow loggers | |
| Data analyzers | |
| Pipe locators |

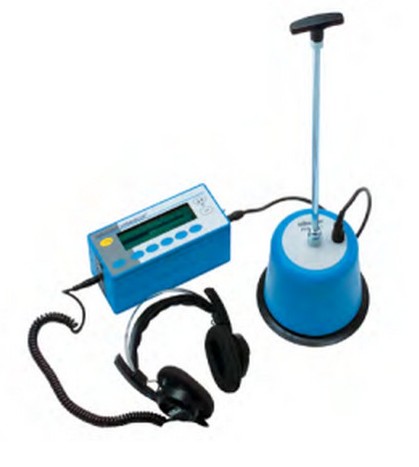

Ground Microphones Hydrolux Series
Devices for acoustic water leak location
Technical Data:
Ground Microphones Hydrolux Series
| See and hear leaks with DSA technology | |
| High audio quality | |
| Non-tiring work | |
| Line location mode | |
| Improved leak identification with frequency analysis |

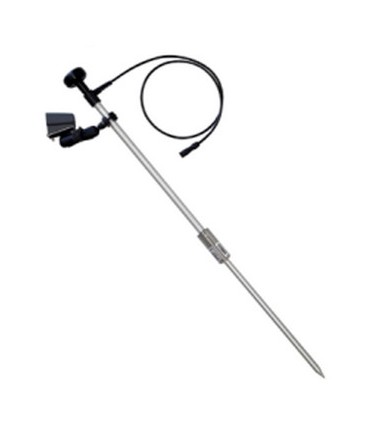

Ground Microphones PAM T-3-1
Listening stick with piezo-microphone for HL 50 and HL 500/5000
Technical Data:
Ground Microphones PAM T-3-1
| Stable and robust design. | |
| The mute switch on the handle enables ergonomic and effortless operation. | |
| Good results also with valves, hydrants and soft ground. | |
| Work is easier as long sensor rod avoids constant bending down. |
